• Please use Illustrator (.AI) software only.
  • Please make sure the texts have been converted to outline.
  • Please make sure any additional images are embedded in the artwork. Alternatively, please send us the zip file, including the linked images or PSD file. The resolution of the images must be at least 300DPI.
  • For printing your design clearly, we highly suggest the below sizes. Please measure by Pen Tool.
    • MOPP & PET: Lines weight being 0.3pt at least. Font CAP-height being 4.5pt at least after converting to outline.
    • Kraft & White Kraft: Lines weight being 0.75pt at least. Font CAP-height being 5.7pt at least after converting to outline.

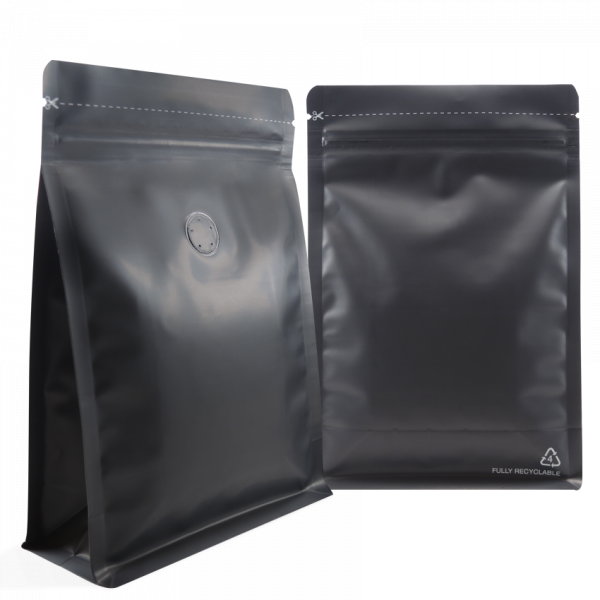

    • Recyclable: Lines weight being 0.6pt at least. Font CAP-height being 4.5pt at least after converting to outline.

*The digital proof shows the ideal positions on products. During pouch forming the material can move up to 3mm in the horizontal plane on the actual products.*

 Colours for Rotogravure Printing:

We generally use the Pantone Formula Guide Series. CMYK is mainly for images only.

  1. If your packaging is Glossy finish, please use the Coated System.
  2. If your packaging is Matt finish / Paper finish, please use the Uncoated System.

*The digital proof shows the digital Pantone colours and CMYK colours. During printing, the colours will match the specified/approved physical colour reference as closely as possible. The digital colours on screens cannot be referenced.*

Colours for Digital Printing:

We only use CMYK for printing.

​​​​​​​*The digital proof shows the digital CMYK colours. During printing, the colours will be printed at the CMYK values of the approved digital proofs. Alternatively, the colours will match the specified/approved physical colour reference as closely as possible. The digital colours on screens cannot be referenced.*



The following PDF files can be downloaded and used when designing artwork for custom projects.

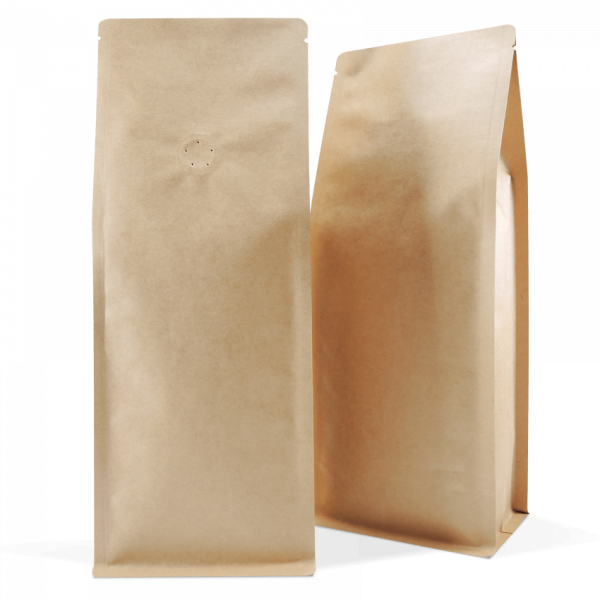

 Box Bottom Bag :PDF File

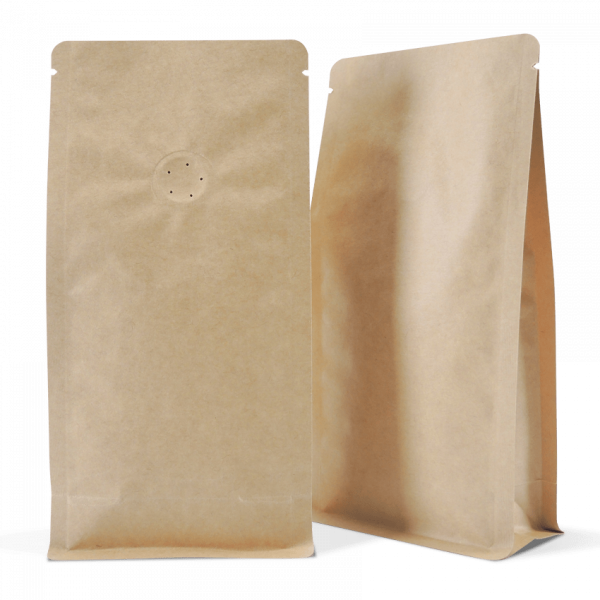

     100g Box Bottom Bag Without Zip Cutter GuideLink

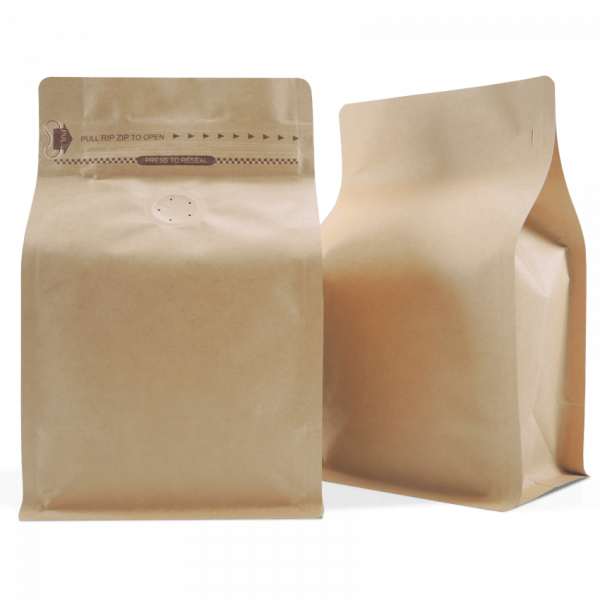

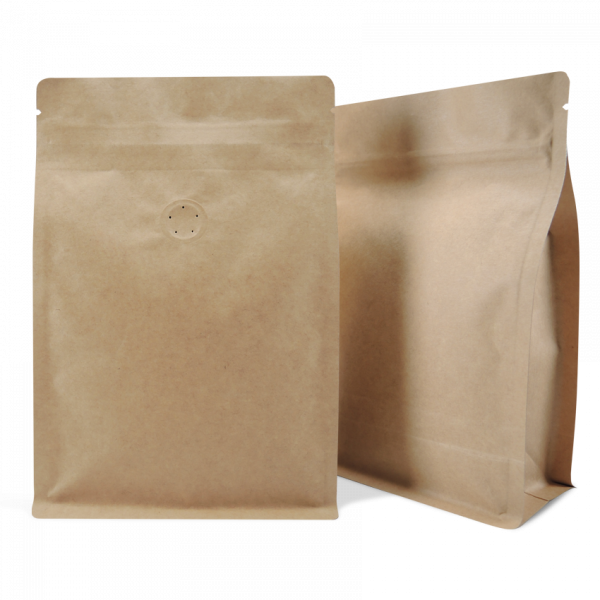

   250g Box Bottom Bag With Rip Zip Cutter GuideLink

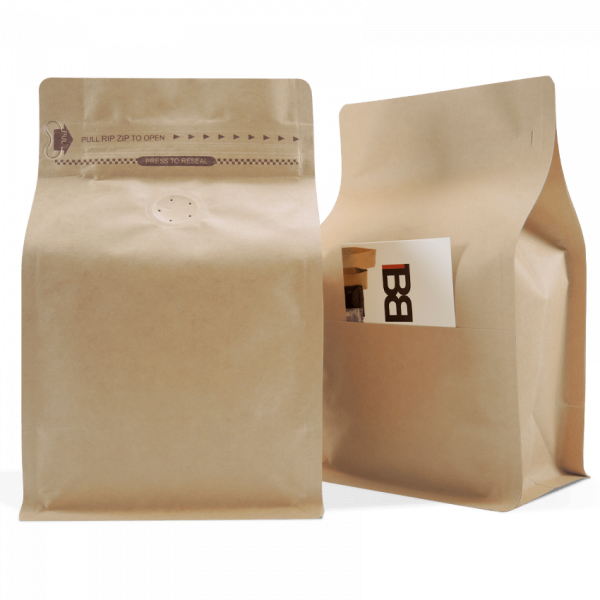

    250g Box Bottom Bag with Rip Zip & Slit Cutter GuideLink

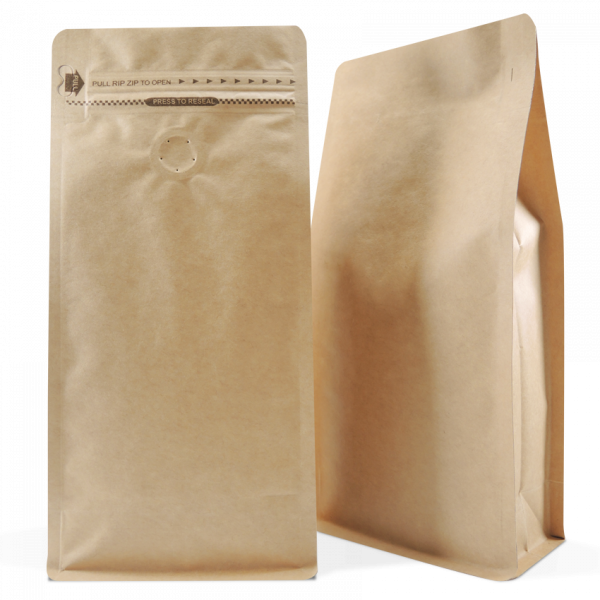

     250g Box Bottom Bag With Rip Zip, Tall Cutter GuideLink

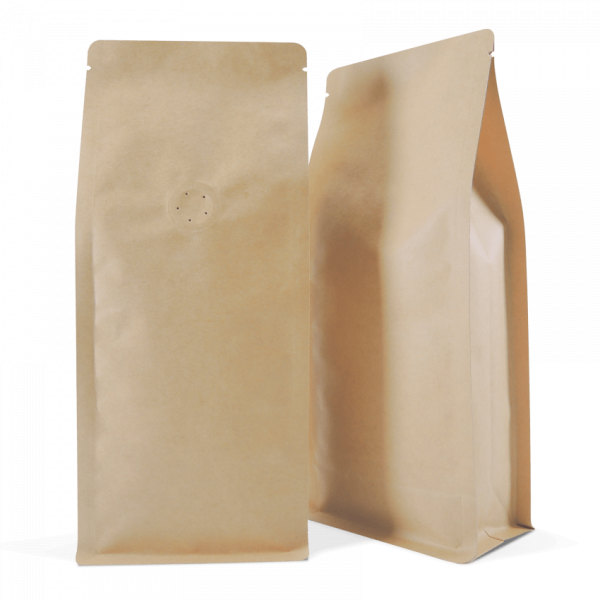

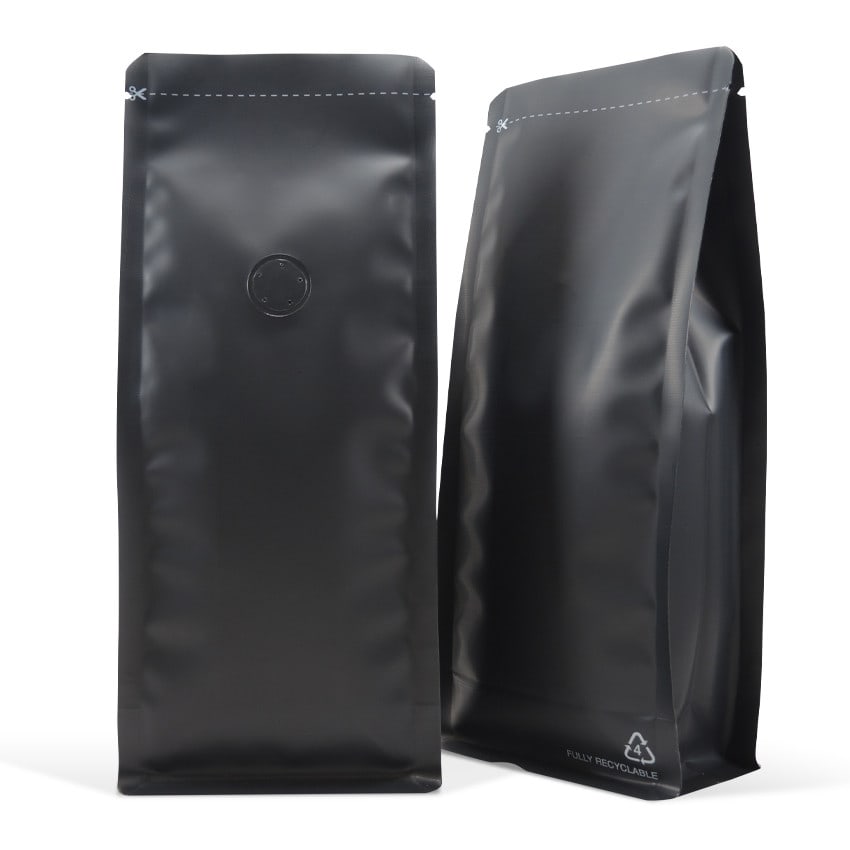

     250g Box Bottom Bag Without Zip Cutter GuideLink

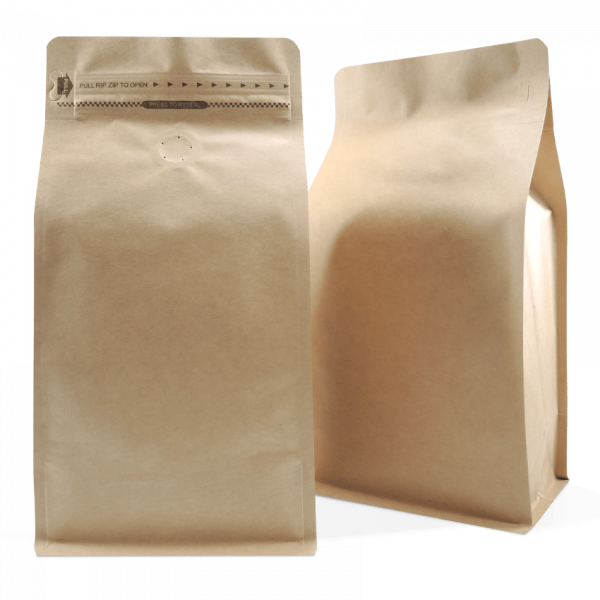

     500g Box Bottom Bag With Rip Zip Cutter GuideLink

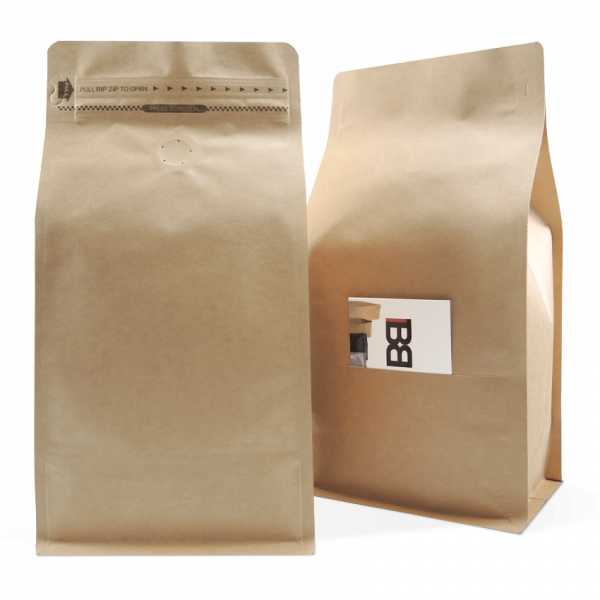

    500g Box Bottom Bag with Rip Zip & Slit Cutter GuideLink
     500g Box Bottom Bag Without Zip Cutter GuideLink

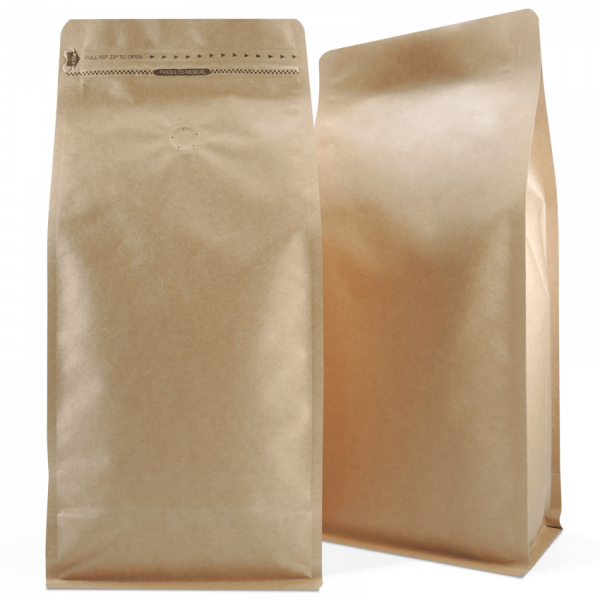

     1kg Box Bottom Bag With Zip Cutter GuideLink

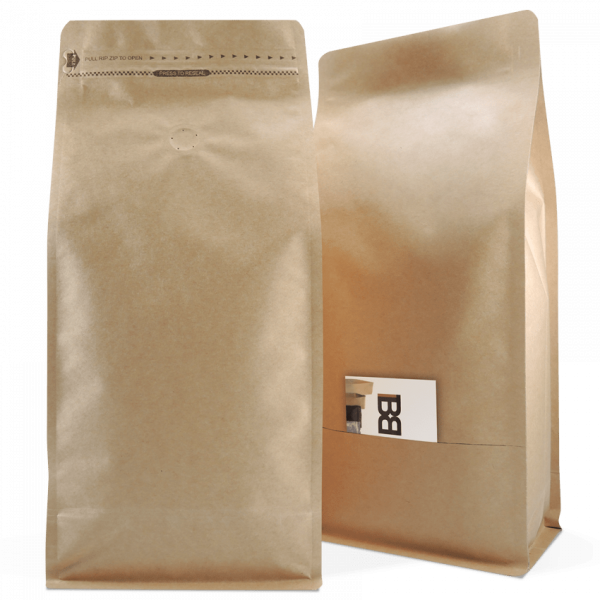

     1kg Box Bottom Bag with Rip Zip & Slit Cutter GuideLink

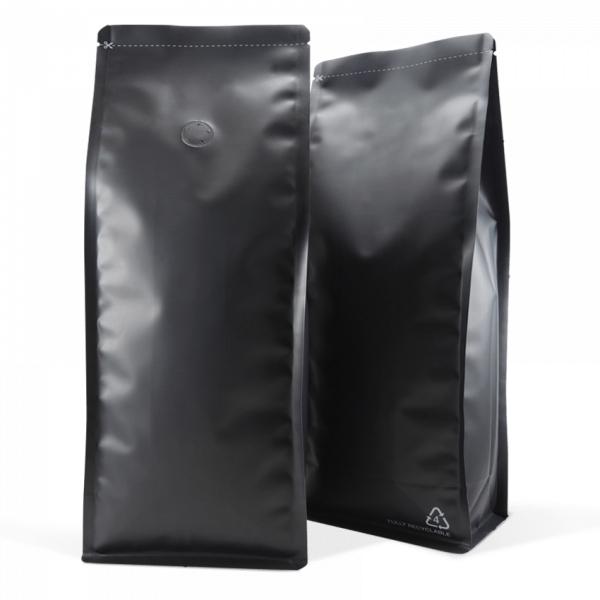

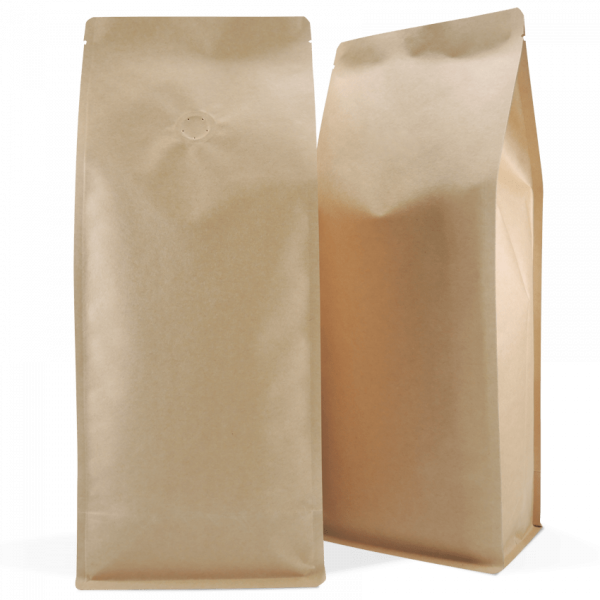

     1kg Box Bottom Bag Without Zip Cutter GuideLink

Side Gusset Bags (recycle series apply) :
    250g Side Gusset Bag Cutter GuideLink
     250g Side Gusset Bag Cutter Guide (side seal)Link

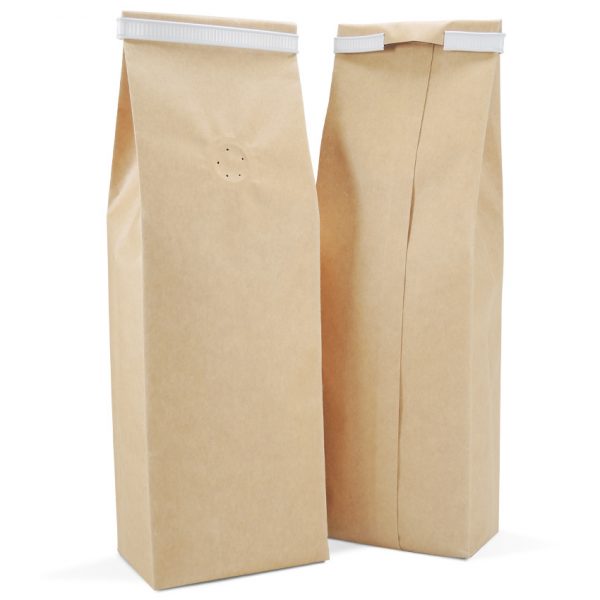

     250g Side Gusset Bag with Tin Tie Cutter GuideLink
     500g Side Gusset Bag Cutter GuideLink
     500g Side Gusset Bag Cutter Guide (side seal)Link

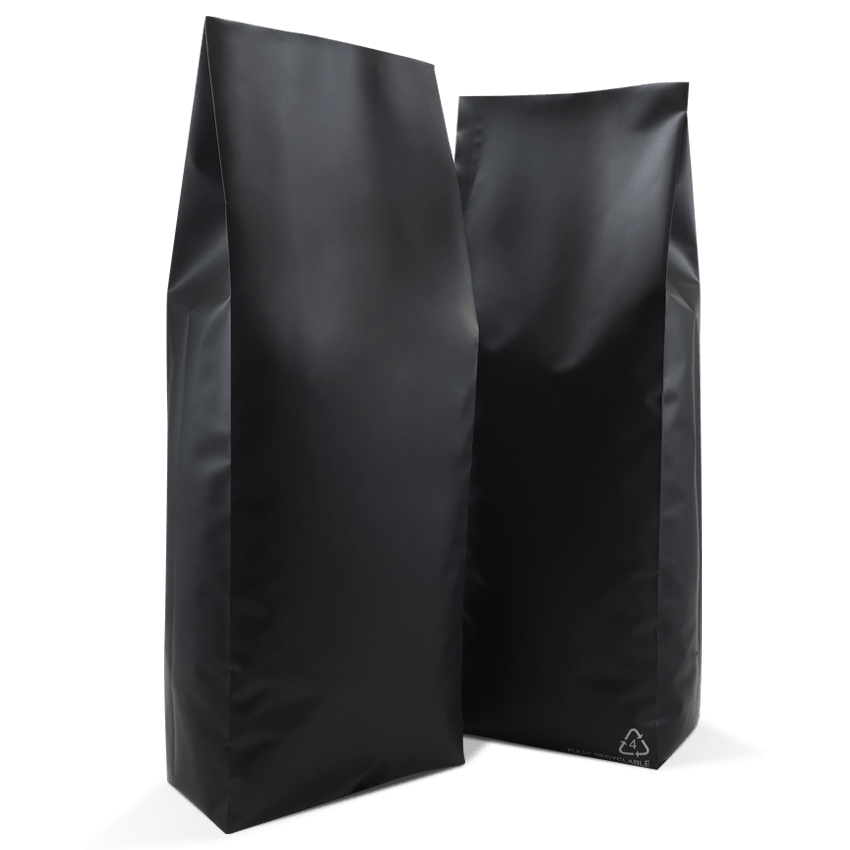

     1kg Side Gusset Bag Cutter GuideLink
     1kg Side Gusset Bag Cutter Guide (side seal)Link

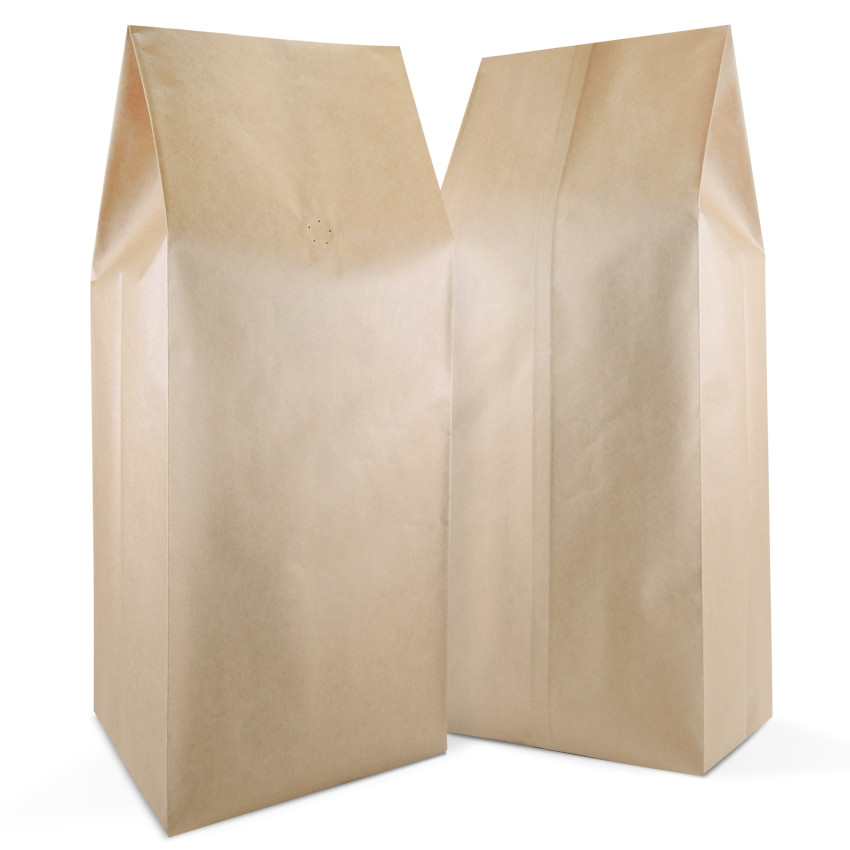

    2.5kg Side Gusset Bag Cutter GuideLink

 Quad Seal Bags:
     250g Quad Seal Cutter GuideLink
     500g Quad Seal Cutter GuideLink
     1kg Quad Seal Cutter GuideLink

Stand Up Pouches:
    28g Stand Up Pouch Cutter Guide Link
    70g Stand Up Pouch Cutter Guide Link
     100g Stand Up Pouch Cutter Guide Link

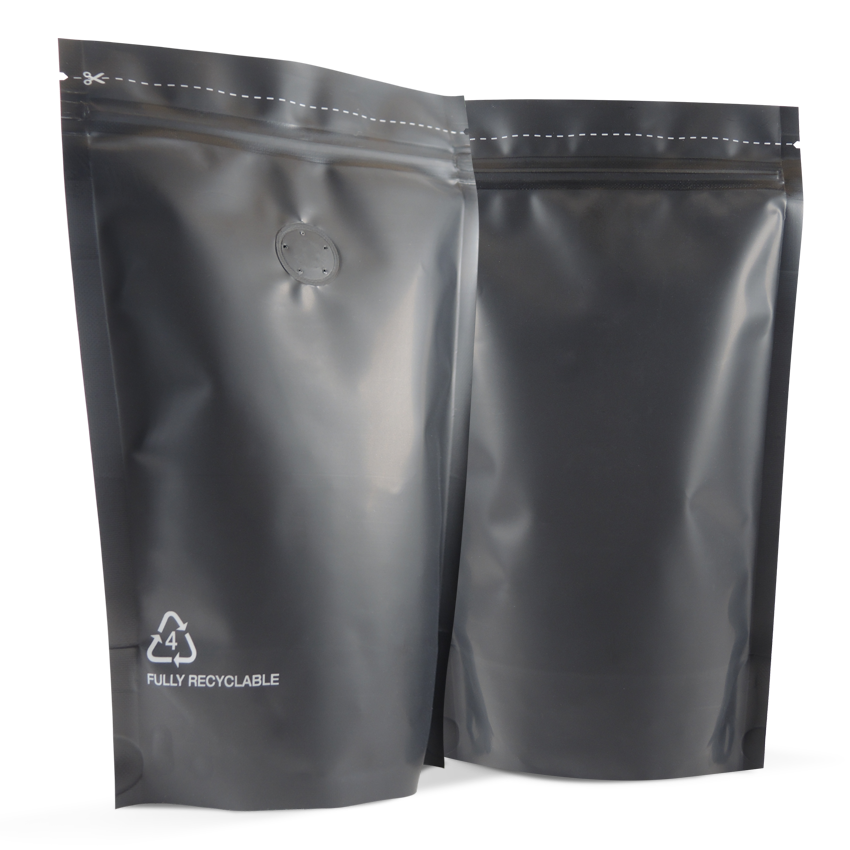

    150g Stand Up Pouch Cutter Guide Link
    150g Stand Up Pouch with Window Cutter Guide Link
    250g Stand Up Pouch Cutter Guide Link

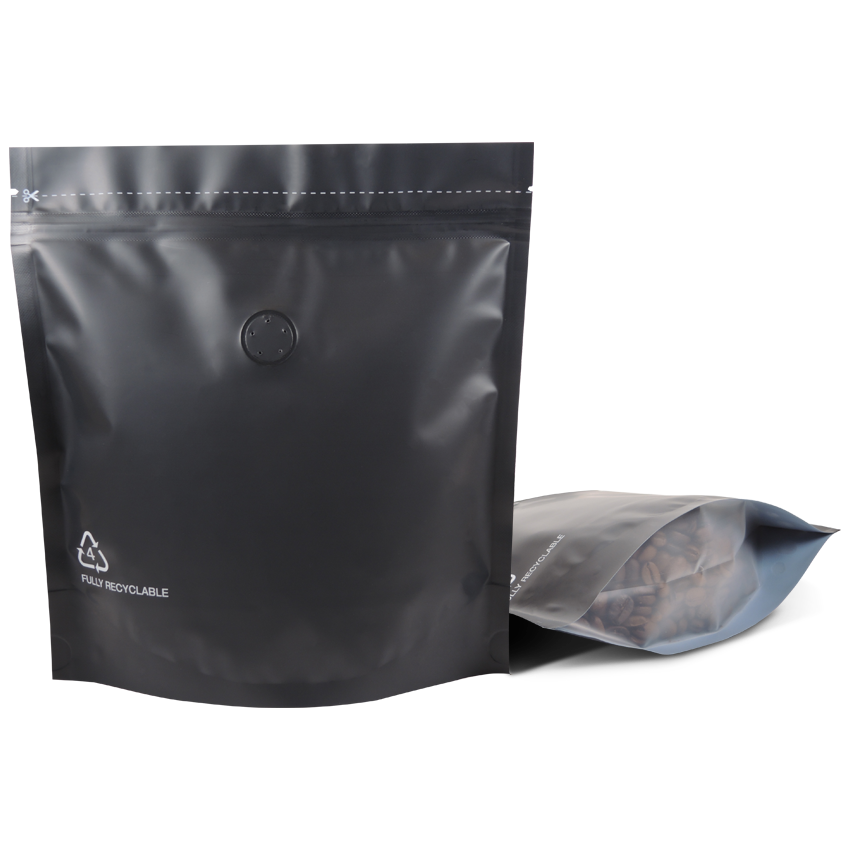

    250g Stand Up Pouch with Window Cutter Guide Link
    500g Stand Up Pouch Cutter Guide Link

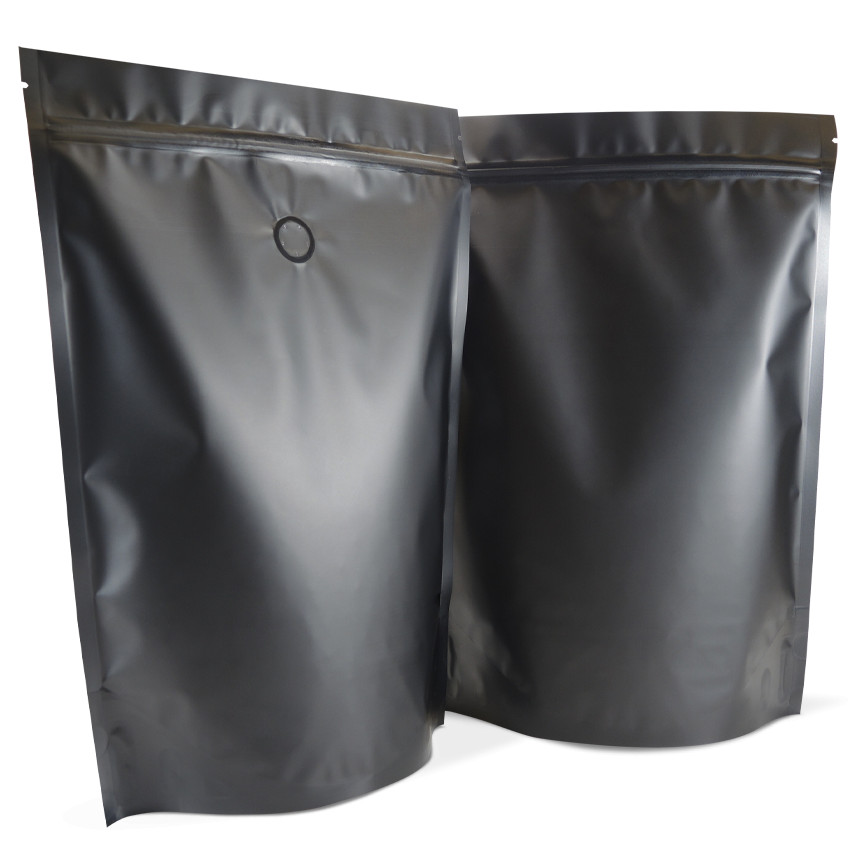

    1kg Stand Up Pouch Cutter Guide Link

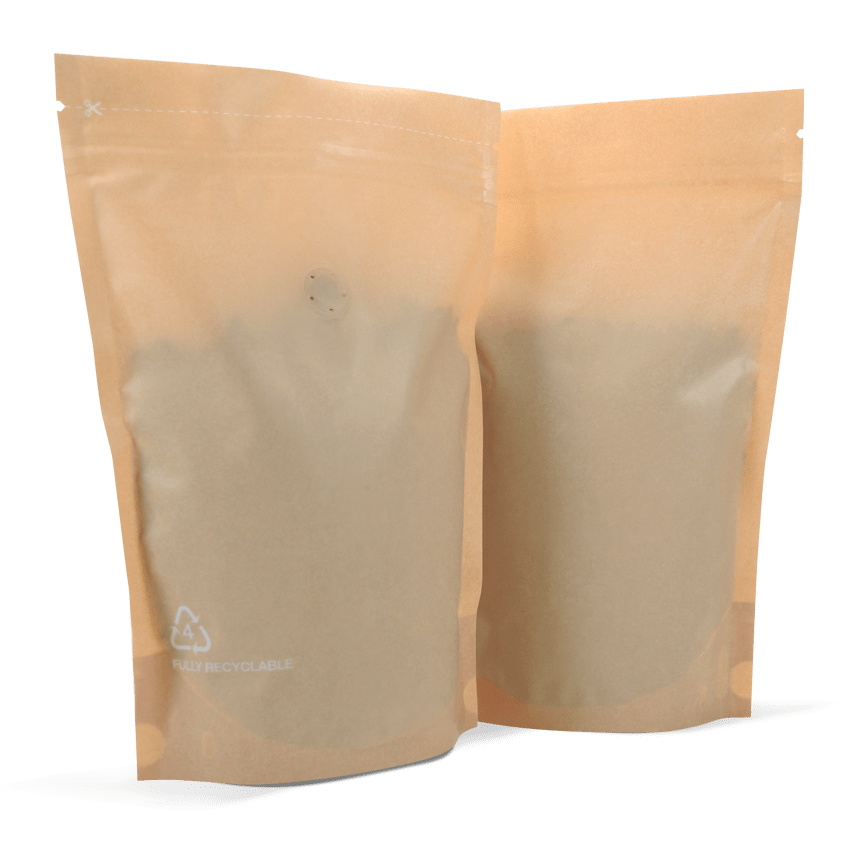

    Recycle 250g Stand Up Pouch Cutter Guide (8mm heat seal)Link

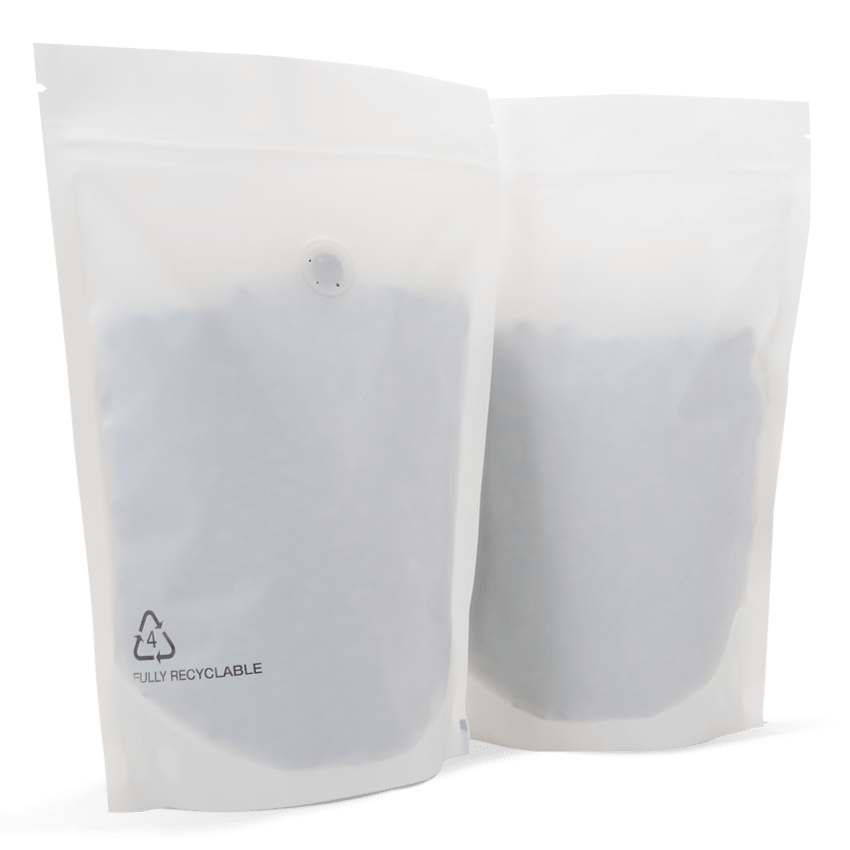

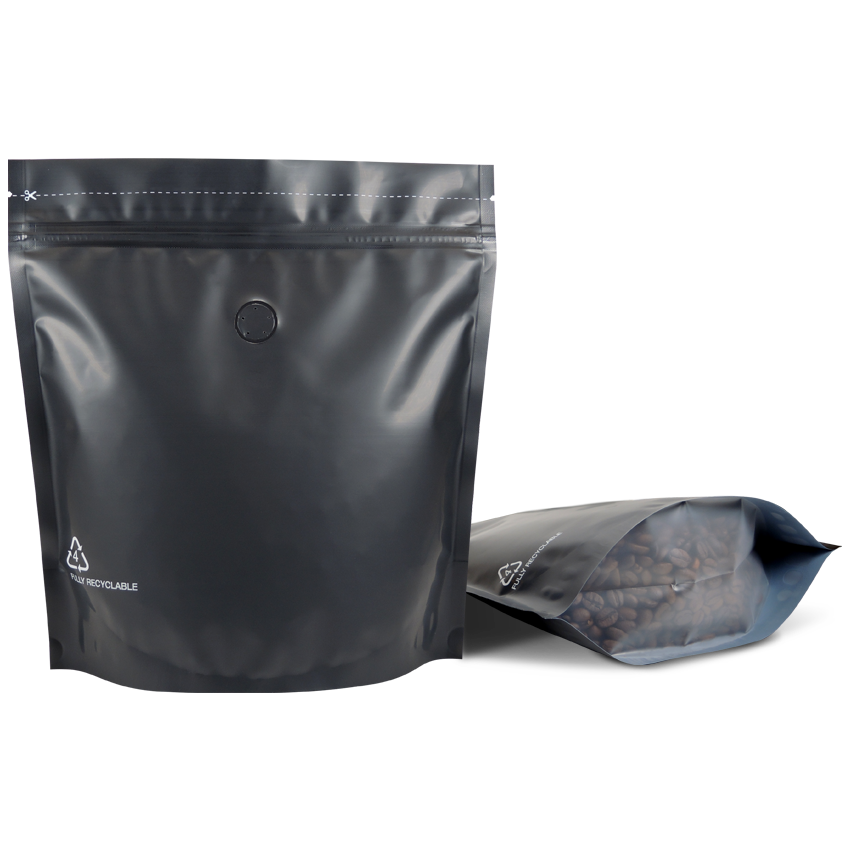

    Recycle 500g Stand Up Pouch Cutter Guide (8mm heat seal)Link
